TVS-AIh1688ATX-U7-32G
TVS-AIh1688ATX-U7-32G
TVS-AIh1688ATX-U7-32G
CPU: Intel Core Ultra 7, 20 (8P+12E) core, 20 Threads, up to 5.3GHz
RAM: 32GB ECC UDIMM DDR5 (1 x 32 GB)_Maximum: 192GB
HDD: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch U.2 NVMe Gen 4 x2 slots
Network: 2 x 2.5G + 2 x 10GBASE-T (10G/1G)
Power: 750W PSU, 100~240V
Thông tin chi tiết

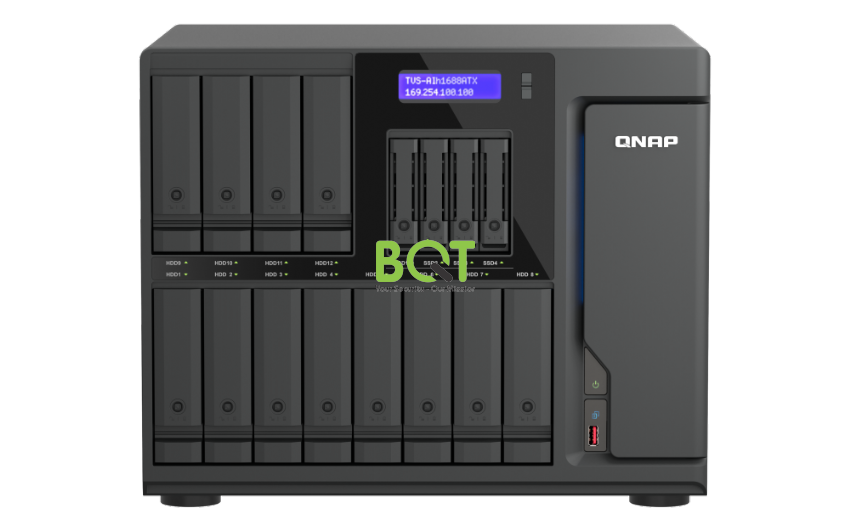

Thiết bị lưu trữ QNAP TVS-AIh1688ATX-U7-32G
CPU: Intel Core Ultra 7, 20 (8P+12E) core, 20 Threads, up to 5.3GHz
RAM: 32GB ECC UDIMM DDR5 (1 x 32 GB)_Maximum: 192GB
HDD: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch U.2 NVMe Gen 4 x2 slots
Network: 2 x 2.5G + 2 x 10GBASE-T (10G/1G)
Power: 750W PSU, 100~240V
| CPU | Intel Core Ultra 7, 20 (8P+12E) core, 20 Threads, up to 5.3GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® Graphics |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| Neural Processing Unit (NPU) | |
| System Memory | 32GB ECC UDIMM DDR5 (1 x 32 GB) |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5
For dual-DIMM configurations, you must use a pair of identical DDR5 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch U.2 NVMe Gen 4 x2 slots |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch U.2/SATA SSD |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/1G) |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) |
Only the 2.5GbE port |
| Jumbo Frame | |
| Thunderbolt Port | Optional via the QXP-T52P 2-port Thunderbolt 5 PCIe adapter
Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported. |
| PCIe Slot | 3 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x4 Slot 3: PCIe Gen4 x4 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches. |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x USB3.2 Gen2 Type-A 2 x USB3.2 Gen 2 Type-C |
| USB 4 port | 2 x USB4 Type-C |
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1~16 |
| LCD Display/ Button | |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 294.3 × 369.89 × 319.8 mm |
| Weight (Net) | 13.8 kg |
| Operating Temperature | 0 - 40°C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 750W PSU, 100~240V |
